OPMMS · OFFER DETAILS
Commercial Offer
What the system includes, what can be added, and with which specifications.
Standard Supply
Hardware, software and commissioning
LASER SCANNER
— Elite Scan T1000*
— 1-year warranty
Technical specifications
- Maximum range 1.4 km on highly reflective surfaces
- Ranging accuracy ≤ 5 mm at 100 m
- Beam divergence 0.35 mrad, for a small spot and more detail on the wall
- Laser pulse repetition rate 100~2000 kHz
- Operating temperature −20 °C to +50 °C
* Range up to 3 km available soon.

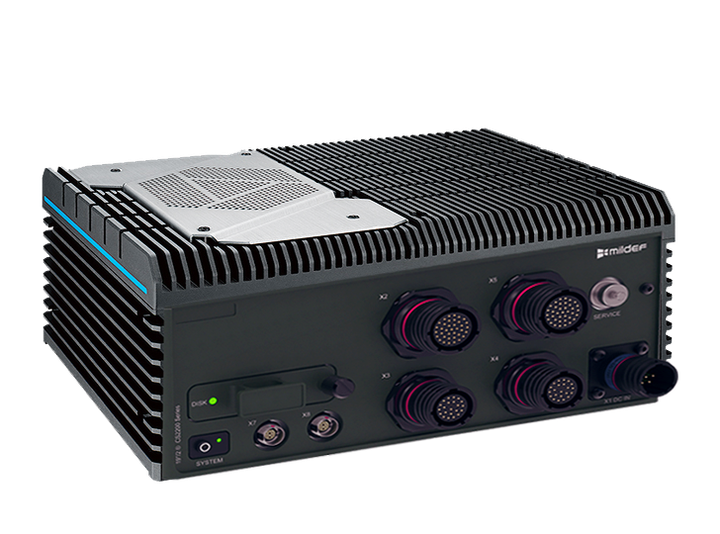

RUGGED CONTROL UNIT
— 1 rugged computer
— 1-year warranty
Technical specifications
- Processor Intel Core i7-10700TE 4.5 GHz
- Memory 32 GB
- Operating system Microsoft Windows 10 Enterprise LTSC 2019
- Storage 500 GB M.2 Samsung 970 EVO Plus + 1 TB SATA SSD 2.5″
SOFTWARE
— 1 OPMMS license
— Remote installation and configuration
— First access for large data storage support
— Setup fixing and adjustment
Features and functions
- Continuous monitoring 24/7, unattended
- Automatic data processing scan comparison and change classification
- Automatic alerts email and SMS on defined thresholds
- 3D data storage scan history on the control unit
- Regions of interest multiple ROIs, each at its own resolution
- Remote access configurable on the same subnet
First year of operation
— System start-up under remote control
— Maintenance
— Remote support up to 10 hours
Not included in the supply
To be arranged by the customer or purchased separately.
- Monitor, mouse and keyboard
- Mounting structure and protective enclosure for the scanner
- Power supply and network connectivity on site
- Subscription and messaging fees for SMS notifications
- Reconstructor software and optional services
Optional Services
To add to the standard supply
Training
A dedicated online training session that puts operators in a position to configure the system, run it and read the monitoring data.
WHAT’S INCLUDED
— One-day live web training
— System configuration and workflow overview
— Data analysis and monitoring procedures
— Q&A session with our specialists
Remote support
Remote technical assistance from our specialists to resolve software or operational issues, keeping the system available and monitoring continuous.
WHAT’S INCLUDED
— One year of remote support by email
— Up to 40 hours of assistance
— Troubleshooting and operational guidance
— Available for systems covered by the maintenance program
Large data maintenance
Designed for long-term installations that build up very large datasets. Keeps database performance efficient and historical data reliably managed.
WHAT’S INCLUDED
— Database maintenance and optimisation
— Agenda reference fixing and adjustment
— Data saving and maintenance operations
— Improved performance for large monitoring archives
SMS notifications
Automatic SMS notifications whenever monitoring thresholds are exceeded, so you know what is happening even when you are away from the workstation.
WHAT’S INCLUDED
— Yearly package of 5,000 SMS
— Automatic alarm notifications
— Immediate delivery to configured recipients
— Available where an SMS gateway service is supported
Yearly license maintenance
An annual maintenance plan giving access to the latest software releases, for compatibility, performance and new functionality through the year.
WHAT’S INCLUDED
— One year of software maintenance
— Software updates
— Installation of new releases
Not included Technical support
Extended warranty
Extends the standard hardware warranty to cover unexpected maintenance costs and keep the system reliable over time.
WHAT’S INCLUDED
— One year of warranty extension
— Coverage for Elite Scan and control unit
Not included Technical support
Additional Software
Advanced 3D analysis supporting geotechnical work
Reconstructor + MINING add-on
WHAT’S INCLUDED
— 1 Reconstructor license
— 1 MINING add-on license
— 1 year of maintenance
Features
- Automatic targetless registration cloud-to-cloud, cloud-to-mesh, mesh-to-mesh
- DEM creation digital elevation models from the point clouds
- Profiles and contours creation with DXF export
- Breakline extraction 3D crest and toe polylines
- Cut-and-fill automatic volume computation with PDF report
- Open data formats for maximum exchange flexibility
Let us build the configuration that fits your site
Tell us the area size, stand-off distance and monitoring frequency, and we will prepare a quote.
